The PLANET 9770 UAV-F Terminal answers mobile communication requirements for Uncrewed Aerial Vehicle (UAV) systems with 4/5G and Iridium Certus® 100 satellite service. It delivers native IP connectivity with midband throughput (88kbps MT; 22kbps MO) in Iridium Certus mode, and broadband throughput (up to 615Mbps) with 4/5G.

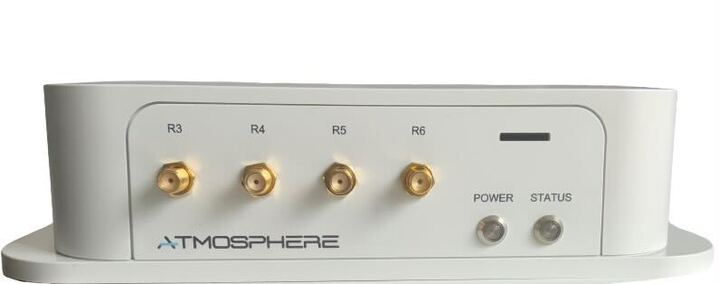

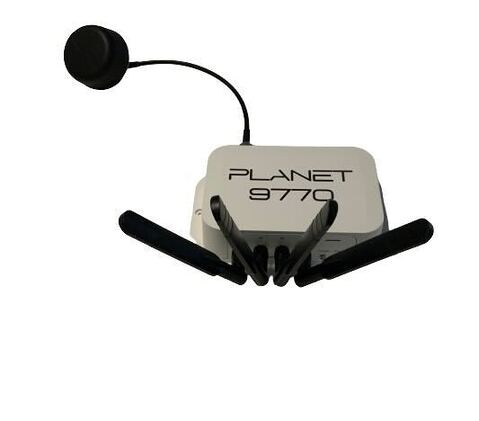

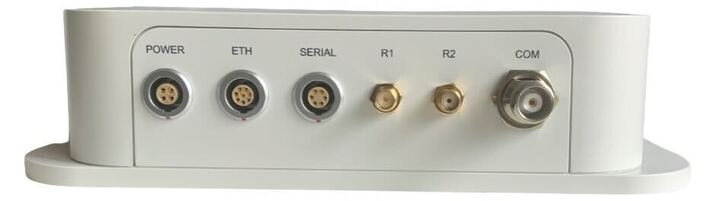

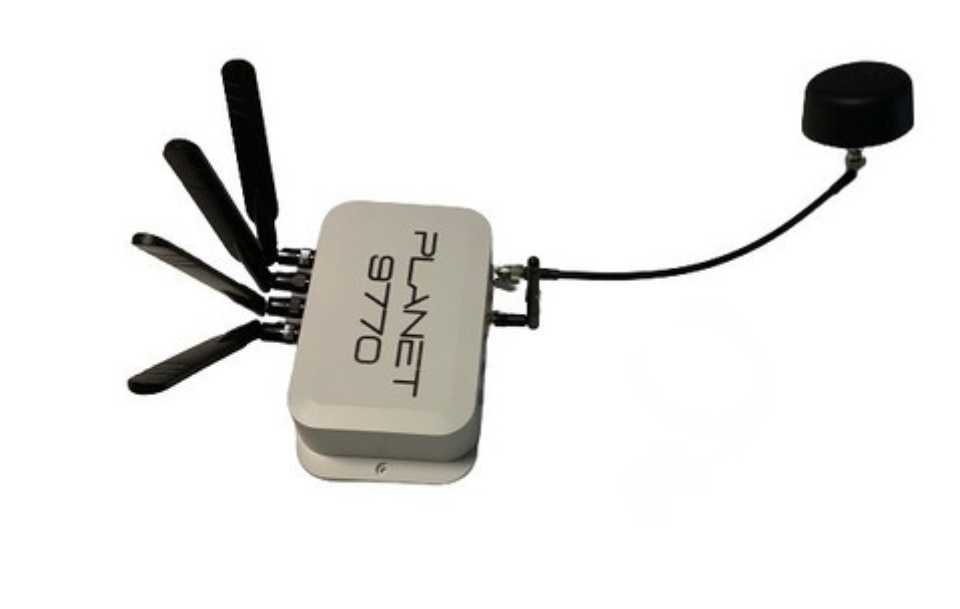

The terminal offers local interfaces (Power, Ethernet, Serial, WiFi), includes a GNSS receiver for autonomous location and timing, and uses a low-profile passive antenna that can be easily installed on the UAV–without ground plane required.

In addition to mobile IP routing capability, the embedded PLANET application, available through a web interface, provides added value functions such as tracking, collaboration tools, telemetry handling, weather upload services, and video processing.
