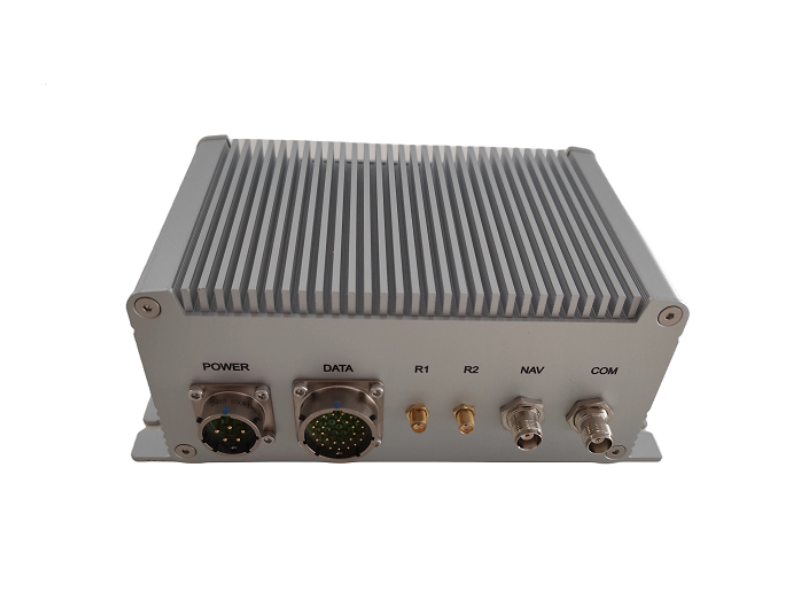

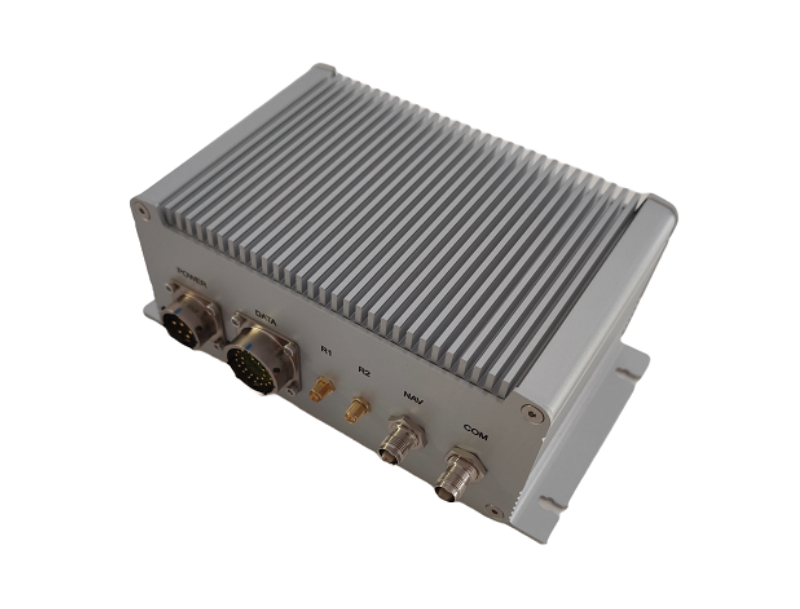

PLANET 8888 SATCOM Terminal

Manufacturer : ATMOSPHERE

Model : TE030

  • Global mobile connectivity

  • Optimal midband throughput

  • Easy integration on mission aircraft/rotorcraft

  • High reliability product & service

  • Video streaming capability

PLANET 8888 SATCOM Terminal


Manufacturer : ATMOSPHERE

Model : TE030

  • Global mobile connectivity

  • Optimal midband throughput

  • Easy integration on mission aircraft/rotorcraft

  • High reliability product & service

  • Video streaming capability

Enabling Mobile Communication & Video Streaming In The Air

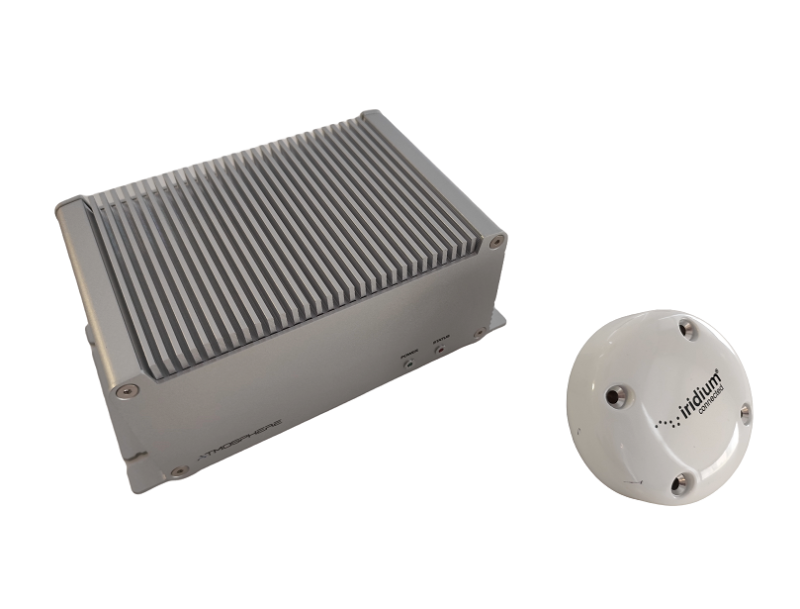

The PLANET 888 Terminal answers mobile communication requirements of mission aircraft/rotorcraft with Iridium Certus™ 100 satellite service. It delivers native IP connectivity with satellite midband throughput (88kbps MT, 88kbps MO), offers local interfaces (Power, Ethernet, Serial), and includes a GNSS receiver for autonomous location and timing. The PLANET 8888 uses a low-profile passive antenna that can be easily installed on aircraft.

In addition to mobile IP routing capability, the embedded PLANET application—available through a Web interface—provides added value functions such as tracking, collaboration tools, telemetry handling, and weather upload services. Additional application software can also enable video processing.

Features

  • Iridium Certus™ 100
  • CST88 modem

  • GNSS Receiver
  • Fanless Processor (SMARC)
  • High Reliability Power Modules
  • Extensive SSD Storage
  • Embedded Video Processing
  • Compression software enabling streaming at up to 88kbps

Product Specifications and Certifications

Technical Specifications

General
Dimensions (L x W x H) 186.5 x 81.5 x 125 mm
Weight 1900 g
Operating Temperature Range -15°C to +55°C
Storage Temperature -40°C to 85°C
Iridium Antenna Sensor Systems S67-1575-414
GNSS Antenna External passive or active antenna
Input Voltage Range 15-50VDC
Data Speed Uplink (UL) 88 kbps
Data Speed Downlink (DL) 88 kbps

Certifications

  • Iridium® Certifcation
